803U-3-C CNC ماكينة قضبان التوصيلry Hydraulic قضبان النحاس تخريم قص ثني For Transformer
Classification :
PRODUCT DETAILS

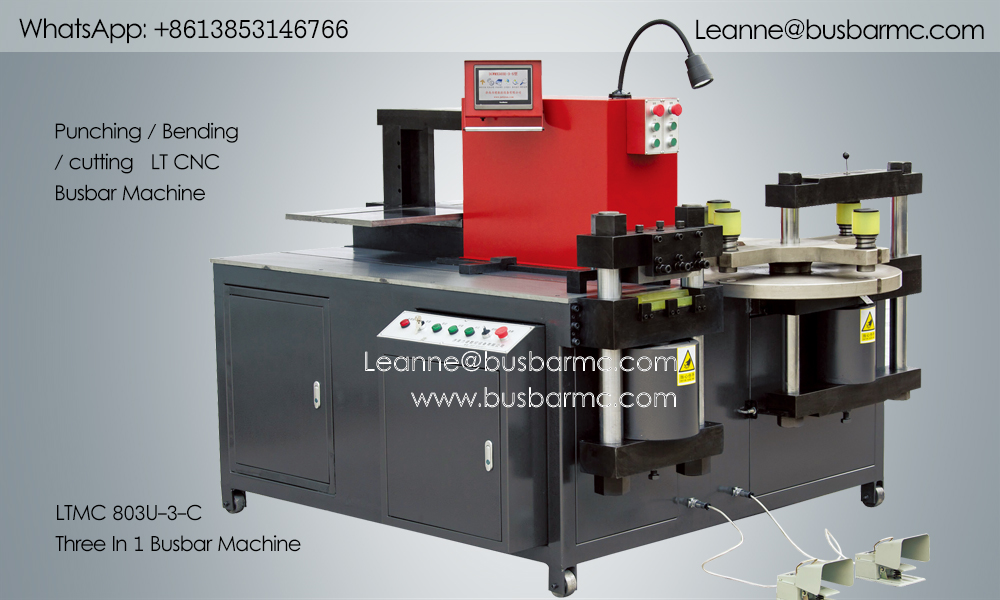

803U-3-C CNC ماكينة قضبان التوصيلry Hydraulic قضبان النحاس تخريم قص ثني For Transformer
803U-3-C CNC ماكينة قضبان التوصيلry Hydraulic قضبان النحاس تخريم قص ثني For Transformer is an LT busbar machine solution for integrated punching, cutting and bending in one workstation. It is intended for low- and medium-volume electrical fabrication in Saudi Arabia and the Middle East. Final capacity and tooling should be confirmed against the required busbar width, thickness, material and drawing.
المواصفات الفنية
Items | Model | ||
303U-3-C | 503U-3-C | 803U-3-C | |
Nominal force (kn) | 300 | 500 | 800 |
Punching dia.range (mm) | ф4.3～ф25 | ф4.3～ф30 | ф4.3～ф34 |
Max.thickness (mm) | 12 | 16 | 20 |
Max.width (mm) | 150 | 200 | 250 |
Max.shearing thickness (mm) | 12 | 16 | 20 |
Max. shearing width (mm) | 150 | 200 | 250 |
Max.horizontal bending width (mm) | 150 | 200 | 250 |
Max.Horizontal bendind thickness (mm) | 12 | 16 | 20 |
Max.vertical bending size (mm) | 10×100 | 12×120 | 12×120 |
Power (kw) | 3×4KW | 3×5.5KW | 3×5.5KW |
Bending precision (degree) | ±1° | ±1° | ±1° |
Repeat bending precision (degree) | ±0.5° | ±0.5° | ±0.5° |
First table size (mm) | 1750×1250 | 1920×1385 | 1920×1385 |
Second table size (mm) | 985×500 | 985×500 | 985×500 |
Outside dimension (mm) | 1780×1400×1300 | 1950×1560×1390 | 1950×1560×1450 |
Container size（mm） | 1870×1480×1520 | 2060×1660×1650 | 2060×1660×1650 |
Total weight（kg） | 1400KG | 1700KG | 2100KG |
التطبيقات
This model is applicable to low- and medium-volume electrical fabrication. Suitability depends on the final workpiece drawing and production target.
صور وفيديو المنتج
الأسئلة الشائعة
What information is needed for model selection?
Provide busbar material, maximum width and thickness, required operations, hole drawings, production volume and power standard.
Can the machine process both copper and aluminium busbars?
Most configurations support both materials within their stated capacity. Confirm the exact alloy and dimensions before ordering.
Are tooling and commissioning available?
Tooling, operating guidance and commissioning options can be configured for the project and destination.
How is the final configuration confirmed?
The engineering team checks the drawings, process sequence, capacity and electrical requirements before the quotation is finalised.
How can I request a quotation?
Submit the form below with the model, busbar dimensions and required operations for an application-specific proposal.
