Combined ماكينة معالجة قضبان التوصيل LT ماكينة قضبان التوصيل-30 للنحاس
Classification :
PRODUCT DETAILS

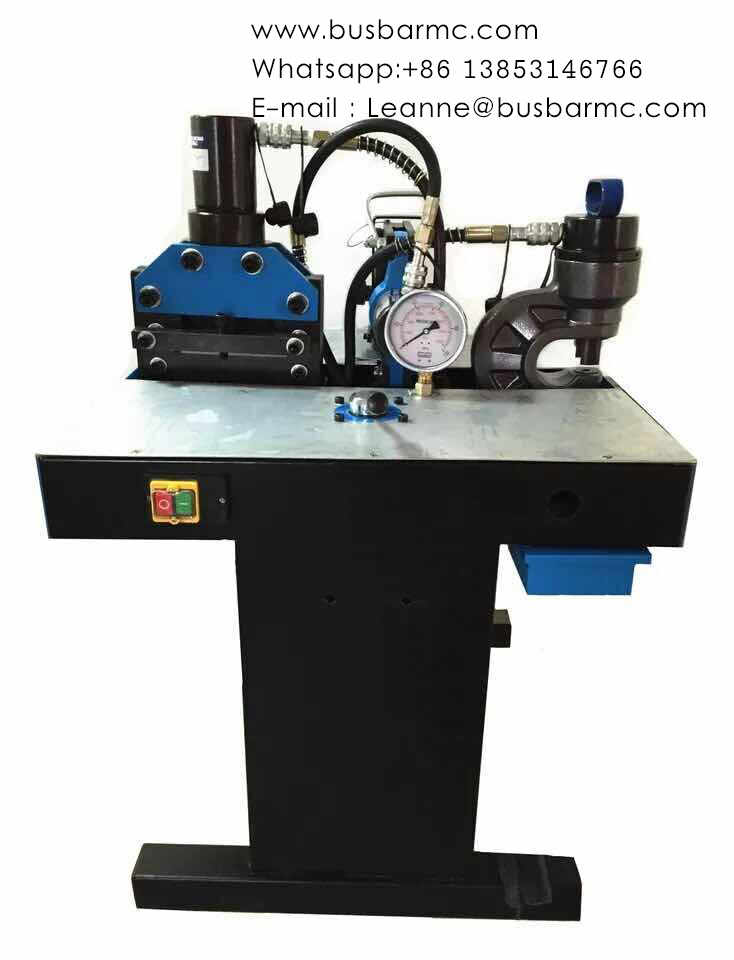

Combined ماكينة معالجة قضبان التوصيل LT ماكينة قضبان التوصيل-30 للنحاس
Combined ماكينة معالجة قضبان التوصيل LT ماكينة قضبان التوصيل-30 للنحاس is an LT busbar machine solution for integrated punching, cutting and bending in one workstation. It is intended for low- and medium-volume electrical fabrication in Saudi Arabia and the Middle East. Final capacity and tooling should be confirmed against the required busbar width, thickness, material and drawing.
المواصفات الفنية
| Item | Model |
| LT busbar machine-30A | |
| Rated oil pressure (kn) | 630 |
| Max. processing width (mm) | 150 |
| Max. processing thickness (mm) | 10 |
| Out dimension (mm) | 690×700×1060 |
| Diameter of standard dies (mm) | ¢10.5、¢13.8、¢17、¢20.5 |
| Input voltage | 220V/50HZ |
| Container size (mm) | 760×770×1320 |
| Machine weight (kg) | 170 |
| Item | Model |
| LT busbar machine-30B | |
| Rated oil pressure (kn) | 630 |
| Max. processing width (mm) | 200 |
| Max. processing thickness (mm) | 12 |
| Out dimension (mm) | 900×700×1160 |
| Diameter of standard dies (mm) | ¢10.5、¢13.8、¢17、¢20.5 |
| Input voltage | 220V/50HZ |
| Container size (mm) | 990×760×1320 |
| Machine weight (kg) | 205 |
التطبيقات
This model is applicable to low- and medium-volume electrical fabrication. Suitability depends on the final workpiece drawing and production target.
صور وفيديو المنتج
الأسئلة الشائعة
What information is needed for model selection?
Provide busbar material, maximum width and thickness, required operations, hole drawings, production volume and power standard.
Can the machine process both copper and aluminium busbars?
Most configurations support both materials within their stated capacity. Confirm the exact alloy and dimensions before ordering.
Are tooling and commissioning available?
Tooling, operating guidance and commissioning options can be configured for the project and destination.
How is the final configuration confirmed?
The engineering team checks the drawings, process sequence, capacity and electrical requirements before the quotation is finalised.
How can I request a quotation?
Submit the form below with the model, busbar dimensions and required operations for an application-specific proposal.
