HQ600-SP CNC قضبان النحاس تخريم shearing ماكينة
Classification :
PRODUCT DETAILS
HQ600-SP CNC قضبان النحاس تخريم shearing ماكينة
HQ600-SP CNC قضبان النحاس تخريم shearing ماكينة is an LT busbar machine solution for precision punching and burr-minimised cutting of copper or aluminium busbars. It is intended for switchgear, distribution panels and transformer production in Saudi Arabia and the Middle East. Final capacity and tooling should be confirmed against the required busbar width, thickness, material and drawing.
المواصفات الفنية
| Parameter | HQ400-S-7P/8P | HQ600-S-7P/8P |
|---|---|---|
| Nominal Pressure | 400KN | 600KN |
| Maximum Processing Size | 12×160mm | 15×200mm |
| Punching Range | Φ4.3-25mm | Φ4.3-35mm |
| Maximum Number of Molds | 8punch 1shear 1emboss | 7punch+1emboss 1shear |
| X-Axis Express | 2000mm | 2000mm |
| X-Axis Positioning Speed | 60m/min | 75m/min |
| Y-Axis Express Travel | 860mm | 960mm |
| Y-Axis Positioning Speed | 35m/min | 35m/min |
| Z-Axis Express Travel | 2000mm | 310mm |
| Z-Axis Positioning Speed | 35m/min | 35m/min |
| Punching Accuracy | ±0.2mm | ±0.2mm |
| Positioning Accuracy | 0.10/500mm | 0.10/500mm |
| Punching Speed | 100 times/min | 120-150 times/min |
| Number of Control Axes | 6 Axis | 6 Axis |
| Machine Dimensions (L×W×H) | 10500×2750×1700mm | 10500×2900×1800mm |
| Component | Option 1 | Option 2 |
|---|---|---|
| Main Motor | Juli | ABB |
| Hydraulic Pump | Taiwan Hydromax | American Albert |
| Solenoid Valve | Taiwan Litand | German Rexroth |
| Guides/Screws | HIWIN / TBI/PMI | HIWIN / TBI/PMI |
| Servo System | Exton | German Rexroth |
| Industrial Computer | Taiwan PanelMaster (Touch Screen) | Beijing Qiyang |
التطبيقات
This model is applicable to switchgear, distribution panels and transformer production. Suitability depends on the final workpiece drawing and production target.

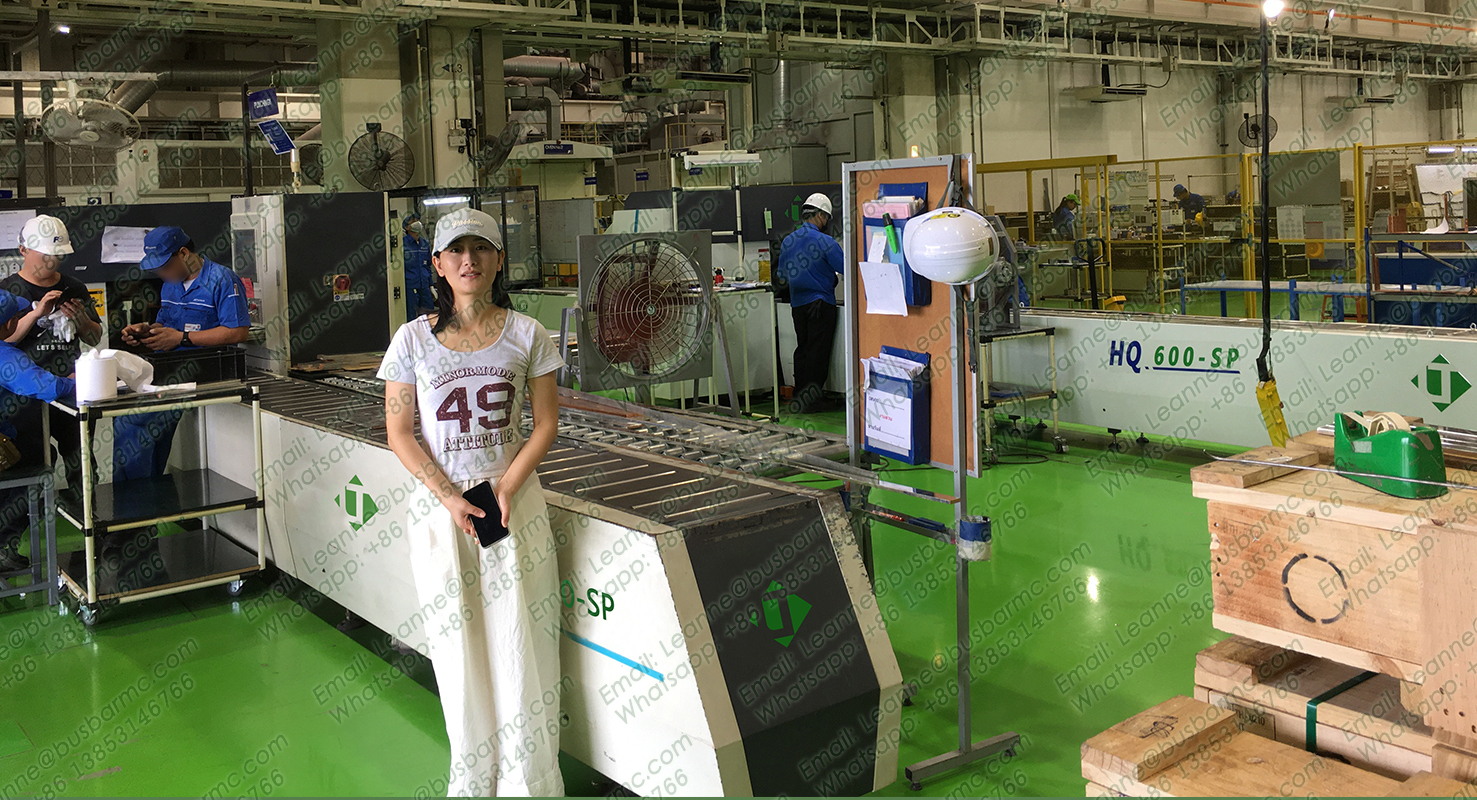

صور وفيديو المنتج
الأسئلة الشائعة
What information is needed for model selection?
Provide busbar material, maximum width and thickness, required operations, hole drawings, production volume and power standard.
Can the machine process both copper and aluminium busbars?
Most configurations support both materials within their stated capacity. Confirm the exact alloy and dimensions before ordering.
Are tooling and commissioning available?
Tooling, operating guidance and commissioning options can be configured for the project and destination.
How is the final configuration confirmed?
The engineering team checks the drawings, process sequence, capacity and electrical requirements before the quotation is finalised.
How can I request a quotation?
Submit the form below with the model, busbar dimensions and required operations for an application-specific proposal.
