CNC قضبان التوصيل ماكينة شطف الحواف CNCDMN-200A
Classification :
PRODUCT DETAILS
CNC قضبان التوصيل ماكينة شطف الحواف CNCDMN-200A
CNC قضبان التوصيل ماكينة شطف الحواف CNCDMN-200A is an LT busbar machine solution for controlled edge milling and chamfering for consistent busbar finish. It is intended for high-quality copper and aluminium busbar preparation in Saudi Arabia and the Middle East. Final capacity and tooling should be confirmed against the required busbar width, thickness, material and drawing.
المواصفات الفنية
| No. | Technical Parameters | Unit | Value | No. | Technical Parameters | Unit | Value |
|---|---|---|---|---|---|---|---|
| 1 | Maximum spindle speed | r/min | 6000 | 2 | Main motor power | KW | 3.7 |
| 3 | Maximum X-axis travel | mm | 525 | 4 | Maximum speed of X axis | m/min | 15 |
| 5 | X-axis positioning accuracy | mm | ±0.08 | 6 | Maximum travel of X axis | mm | 500 |
| 7 | Maximum Y-axis speed | m/min | 15 | 8 | Positioning accuracy of Y axis | mm | ±0.08 |
| 9 | Maximum Z-axis travel | mm | 130 | 10 | Positioning accuracy of Z axis | mm | ±0.05 |
| 11 | Workpiece length that can be processed | mm | 150-6000 | 12 | Machinable workpiece width | mm | 30-200 |
| 13 | Machinable workpiece thickness | mm | 4-16 | 14 | Dimensions | mm | 2260×1580×2100 |
| No. | Technical Parameters | Unit | Value | No. | Technical Parameters | Unit | Value |
|---|---|---|---|---|---|---|---|
| 1 | Number of CNC axes | PC | 5 | 2 | X-axis servo motor power | KW | 2 |
| 3 | Y-axis servo motor power | KW | 2 | 4 | Z-axis servo motor power | KW | 1 |
| 5 | Air source pressure | MPa | 0.6-0.8 | 6 | Hydraulic pump motor power | KW | 2 |
| 7 | Total power | KW | 12 | ||||
| NO | Name | Brands | QTS |
|---|---|---|---|
| 1 | Central Processing Unit (PLC) | Beckhoff, Germany | 1 |
| 2 | Servo Motor | Rexroth, Germany | 3 |
| 3 | Servo Drive | Rexroth, Germany | 3 |
| 4 | Ball Screw | TBI, Taiwan | 3 |
| 5 | Linear Rolling Guide | Hiwin, Taiwan | 3 |
| 6 | Pneumatic Parts | HSBC | 1 |
| 7 | Hydraulic Parts | Shanghai Fengyi | 1 |
| 8 | Spindle | Jingyao | 1 |
التطبيقات
This model is applicable to high-quality copper and aluminium busbar preparation. Suitability depends on the final workpiece drawing and production target.

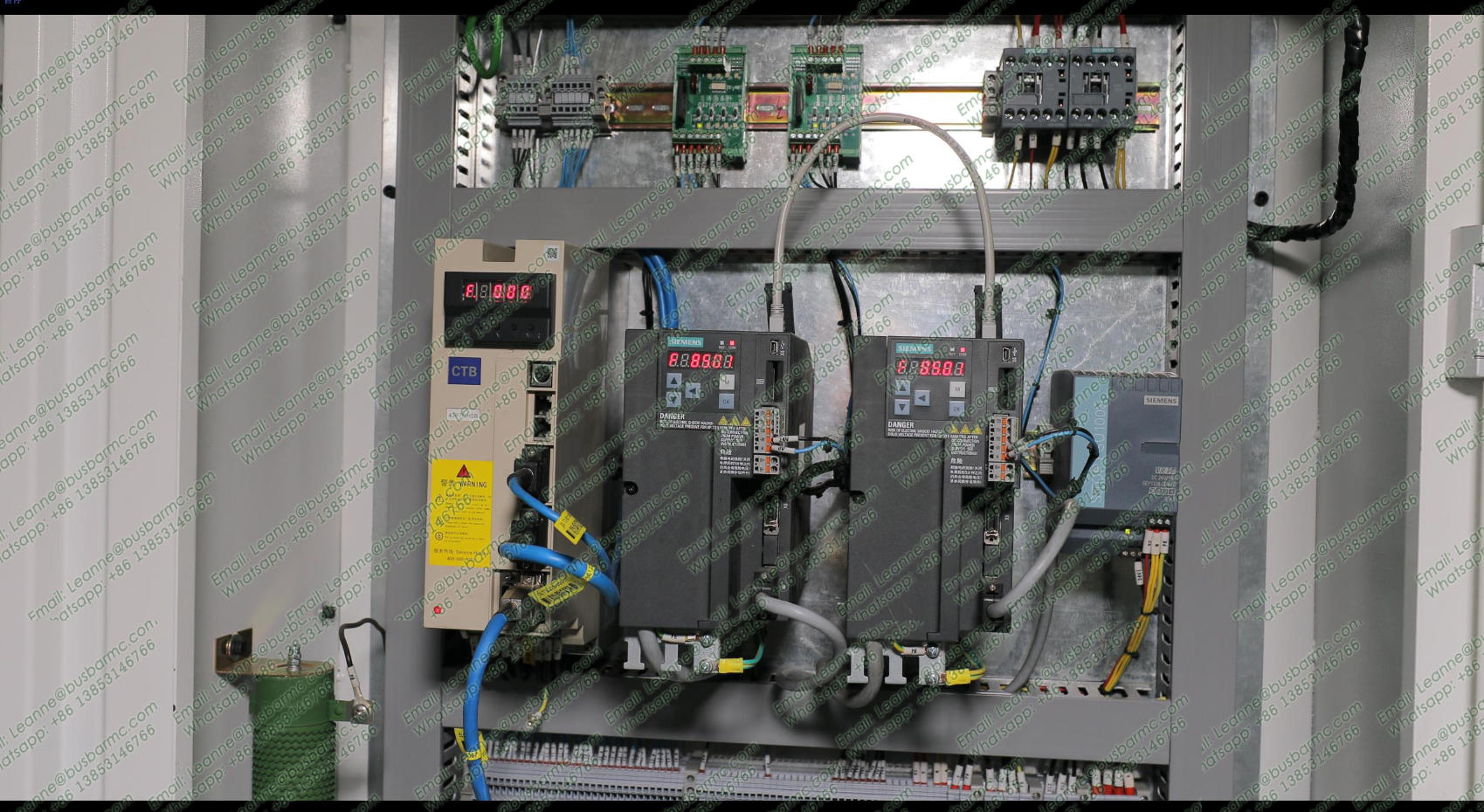

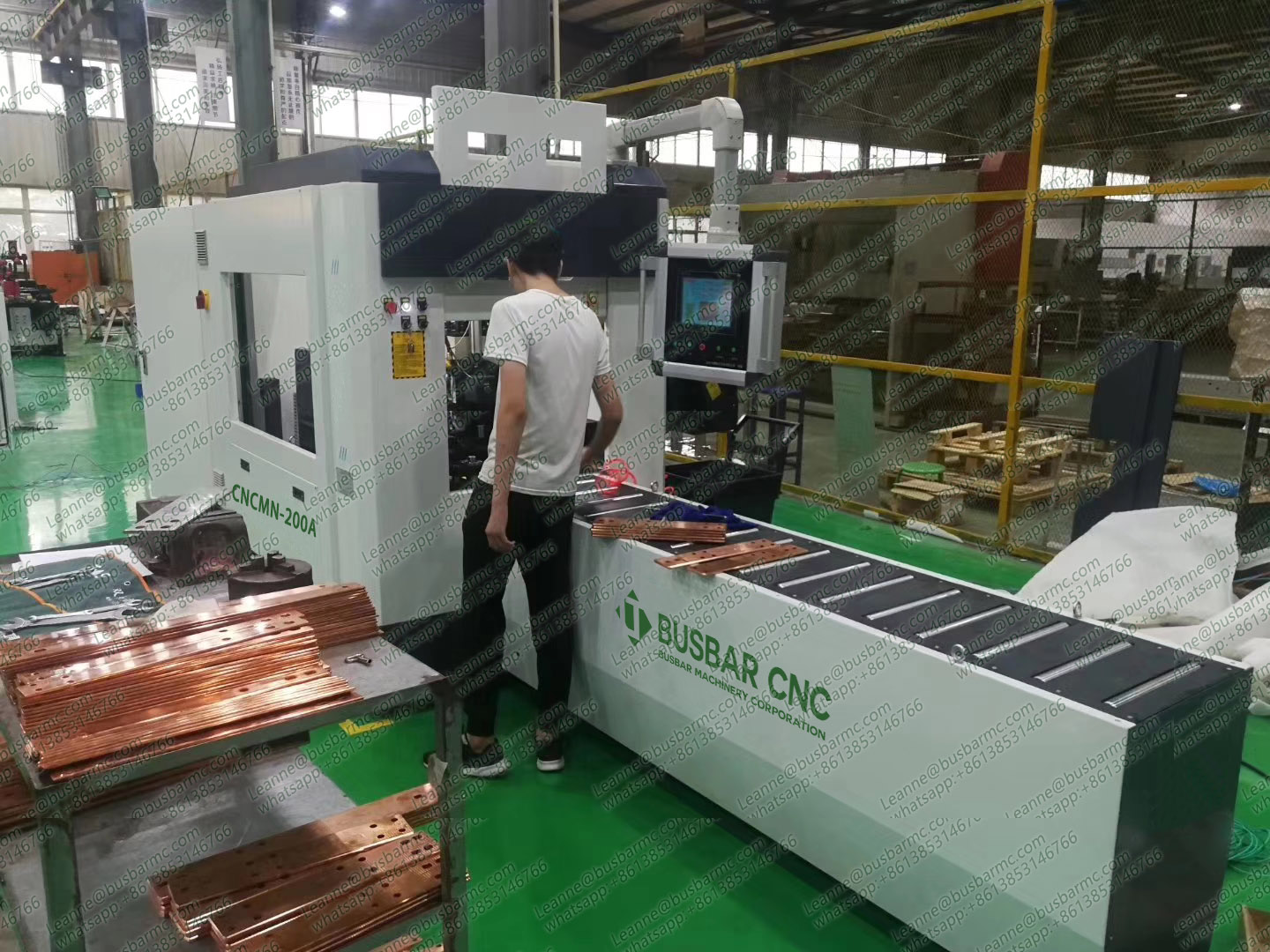

صور وفيديو المنتج
الأسئلة الشائعة
What information is needed for model selection?
Provide busbar material, maximum width and thickness, required operations, hole drawings, production volume and power standard.
Can the machine process both copper and aluminium busbars?
Most configurations support both materials within their stated capacity. Confirm the exact alloy and dimensions before ordering.
Are tooling and commissioning available?
Tooling, operating guidance and commissioning options can be configured for the project and destination.
How is the final configuration confirmed?
The engineering team checks the drawings, process sequence, capacity and electrical requirements before the quotation is finalised.
How can I request a quotation?
Submit the form below with the model, busbar dimensions and required operations for an application-specific proposal.
