CNC Double-Head قضبان التوصيل ماكينة تفريز CNCDMN-200A
CNC Double-Head قضبان التوصيل ماكينة تفريز CNCDMN-200A is an LT busbar machine solution for controlled edge milling and chamfering for consistent busbar finish. It is intended for high-quality copper and aluminium busbar preparation in Saudi Arabia and the Middle East. Final capacity and tooling should be confirmed against the required busbar width, thickness, material and drawing.
المواصفات الفنية
| No. | Parameter Name | Unit | Parameter | Remarks |
|---|---|---|---|---|
| 1 | Maximum spindle speed | r/min | 6000 | |
| 2 | Main motor power | KW | 3.7 | |
| 3 | Model of spindle handle | - | BT40 | |
| 4 | X-axis working stroke | mm | 525 | Ensure copper busbars within R100 can be machined. |
| 5 | Y-axis working stroke | mm | 500 | Ensure copper busbars within width of 160 can be machined. |
| 6 | X-axis maximum operating speed | m/min | 15 | |
| 7 | Y-axis maximum operating speed | m/min | 15 | |
| 8 | X-axis positioning accuracy | mm | ±0.08 | |
| 9 | Y-axis positioning accuracy | mm | ±0.08 | |
| 10 | Thickness of workpiece | mm | 4–16 | 4–16 |
| 11 | Width of workpiece | mm | 30–200 | |
| 12 | Length of workpiece | mm | 150–6000 |
| No. | Parameter Name | Unit | Parameter | Remarks |
|---|---|---|---|---|
| 1 | Number of CNC axes | Piece | 5 | |
| 2 | Power of X-axis servo motor | KW | 2 | |
| 3 | Power of Y-axis servo motor | KW | 2 | |
| 4 | Hydraulic pump motor power | KW | 2.0 | |
| 5 | Working pressure of pneumatic system | MPa | 0.6–0.8 | |
| 6 | Machine dimensions (L×W×H) | mm | 2260×1580×2100 | Length does not include feeding table. |
| 7 | Machine weight | Kg | 2380 | |
| 8 | Total power | KW | 12 |
| No. | Name | Quantity | Brand |
|---|---|---|---|

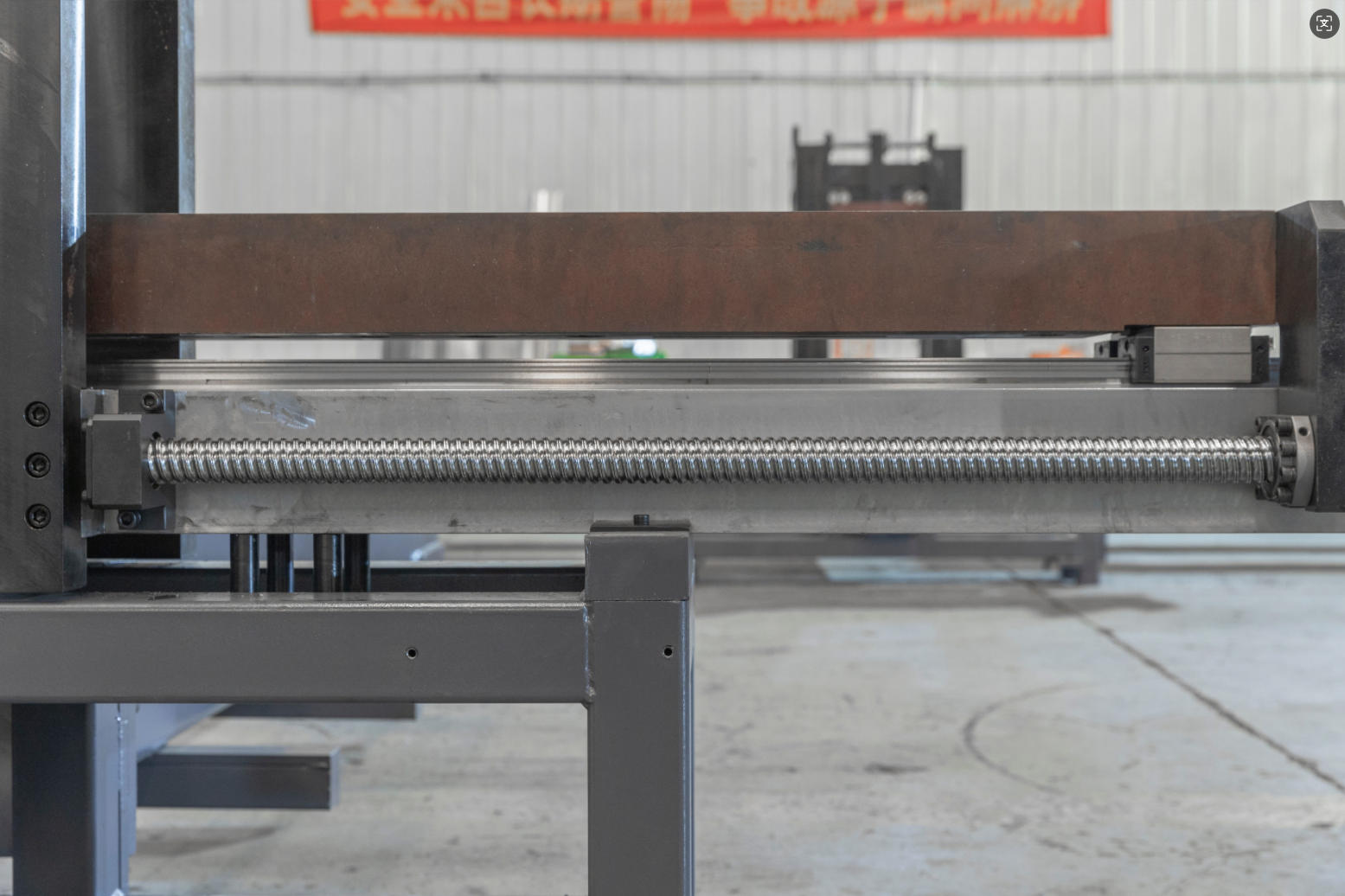

| 1 | Ball screw | 4 sets | HIWIN/TBI |
| 2 | Linear rolling guide | 8 sets | HIWIN/PEK |

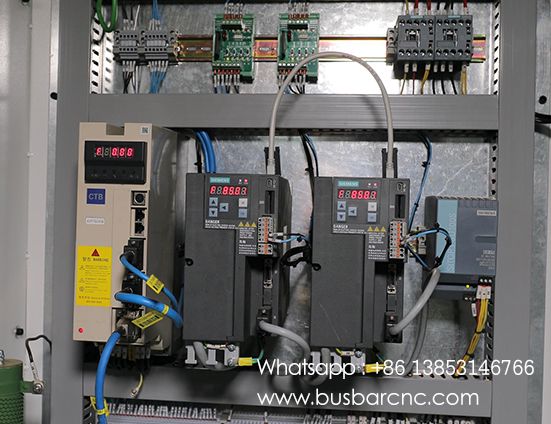

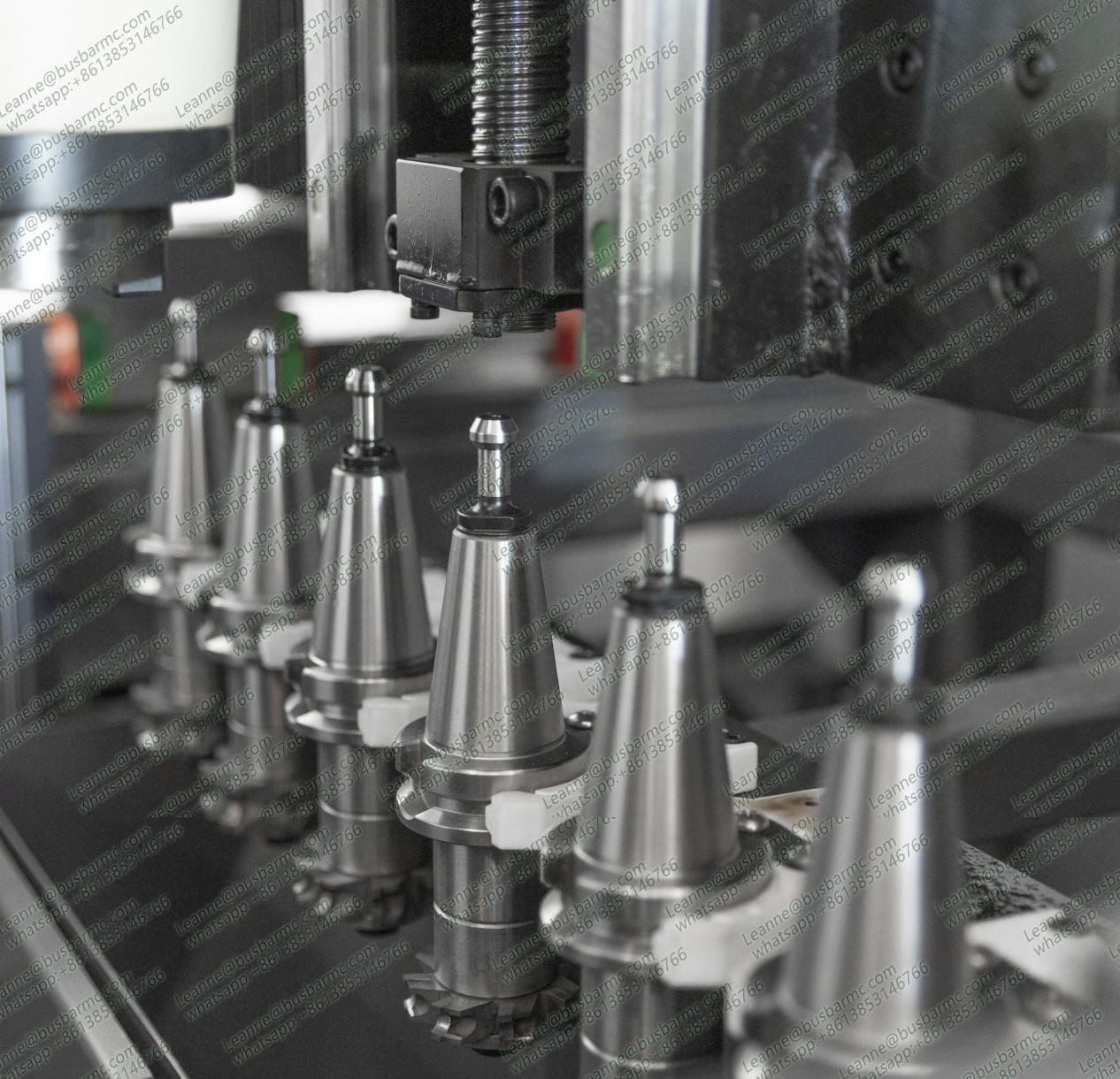

| 3 | Servo driver | 4 sets | Rexroth |
| 4 | Servo motor | 4 sets | Rexroth |
| 5 | Pneumatic parts | 1 set | HSBC |
| 6 | Hydraulic components | 1 set | Shanghai Fengyi |
| 7 | Spindle servo | 1 set | Jing Yao |
| 8 | Programmable controller | 1 set | BECKHOFF, Germany |
| No. | Item | Quantity | Description |
| 1. | Milling cutter | 6 sets | 4mm, 5mm, 6mm, 8mm, 10mm, 12mm |
| 2. | Tool holder device | 1 set | |
| 3. | Screwdrivers | 2 sets | 2 bigger screwdrivers, 2 small screwdrivers |
| 4. | Inductive proximity sensor | 1 pc | |
| 5. | Double-head wrench | 1 set | |
| 6. | Oil sprayer | 1 pc | |
| 7. | Oil lubrication box | 1 pc | |
| 8. | Bending shaft hole cover | 6 pcs | |
| 9. | Oil hose | 1 pc |

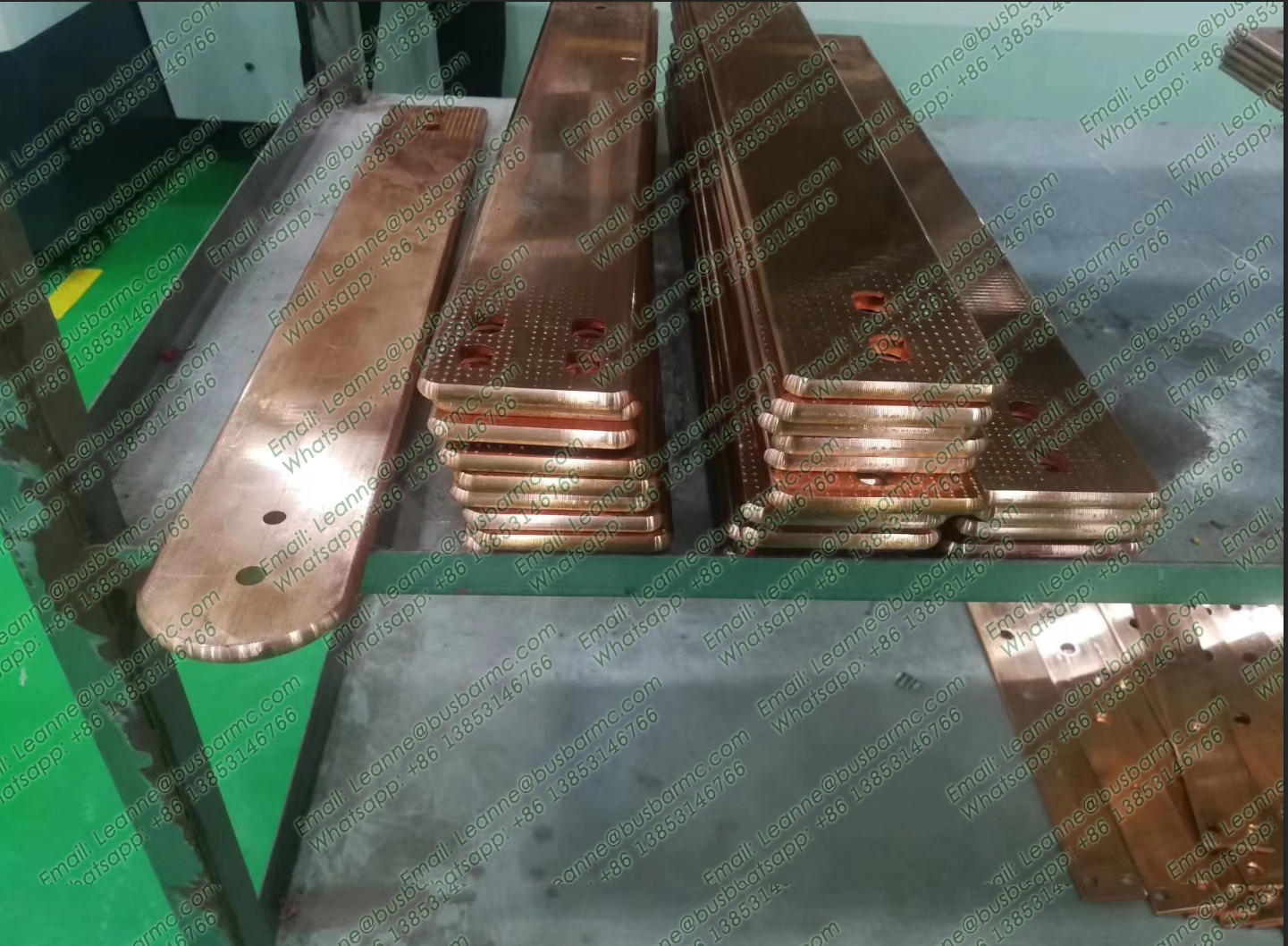

التطبيقات
This model is applicable to high-quality copper and aluminium busbar preparation. Suitability depends on the final workpiece drawing and production target.

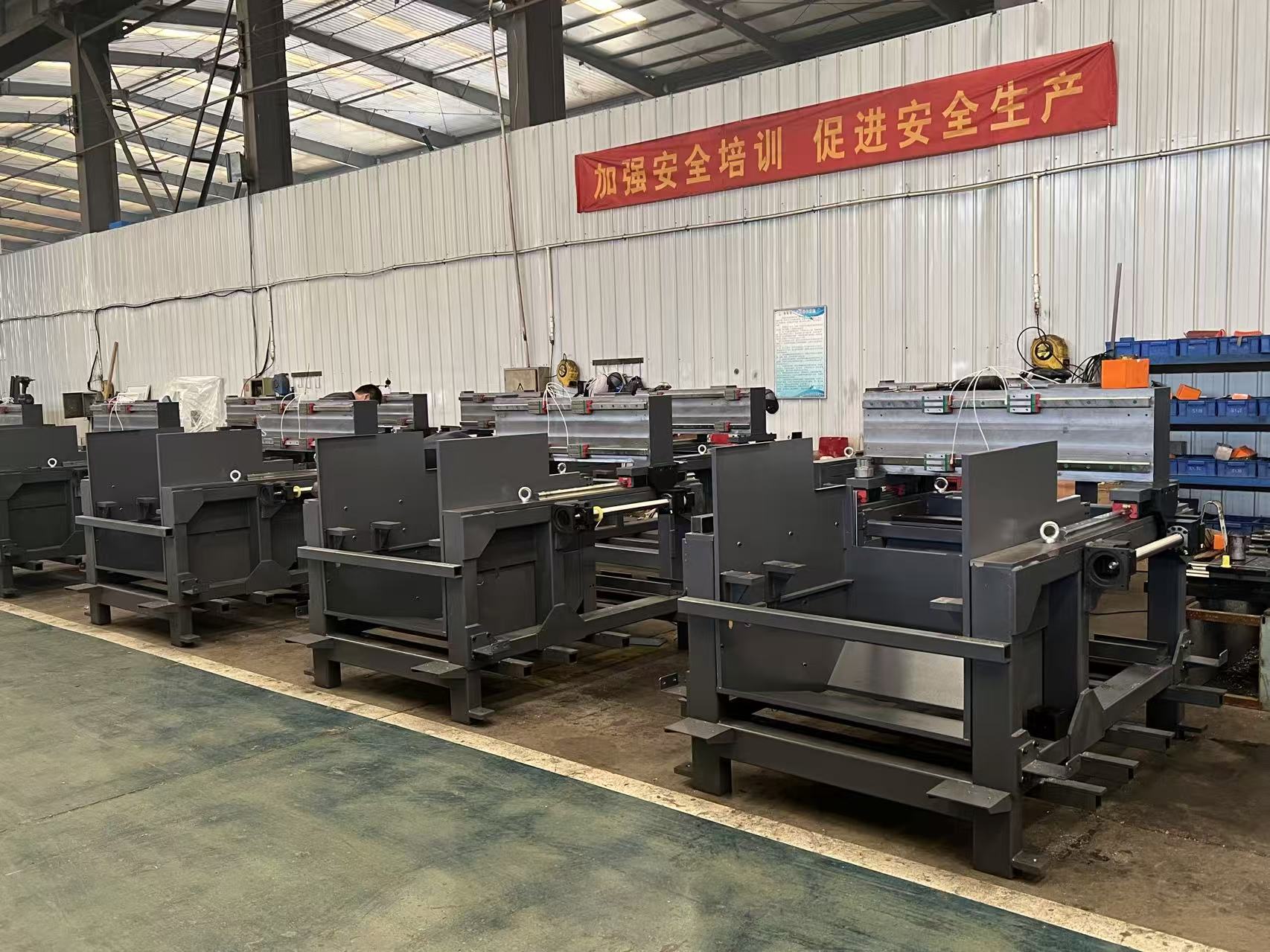

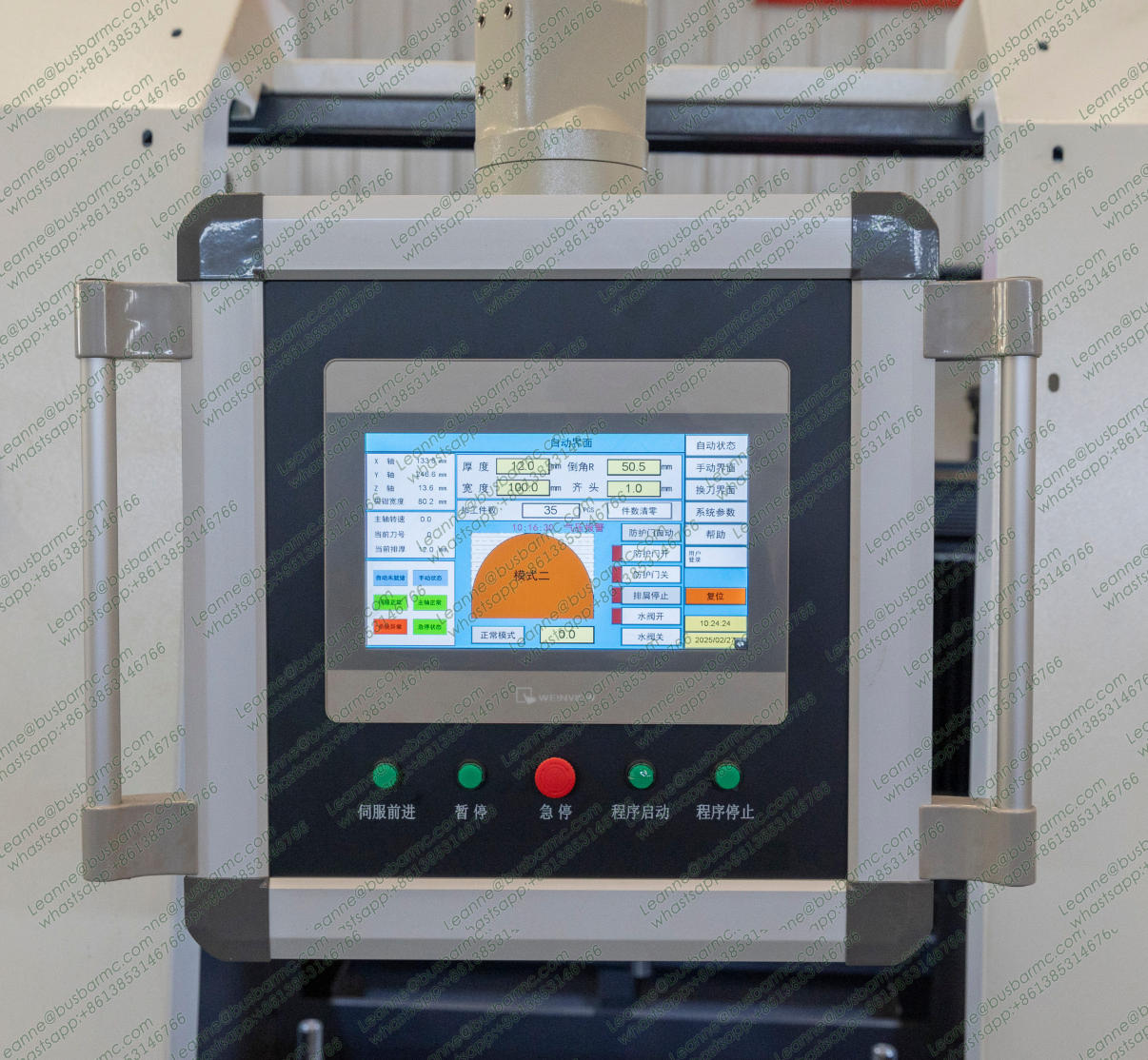

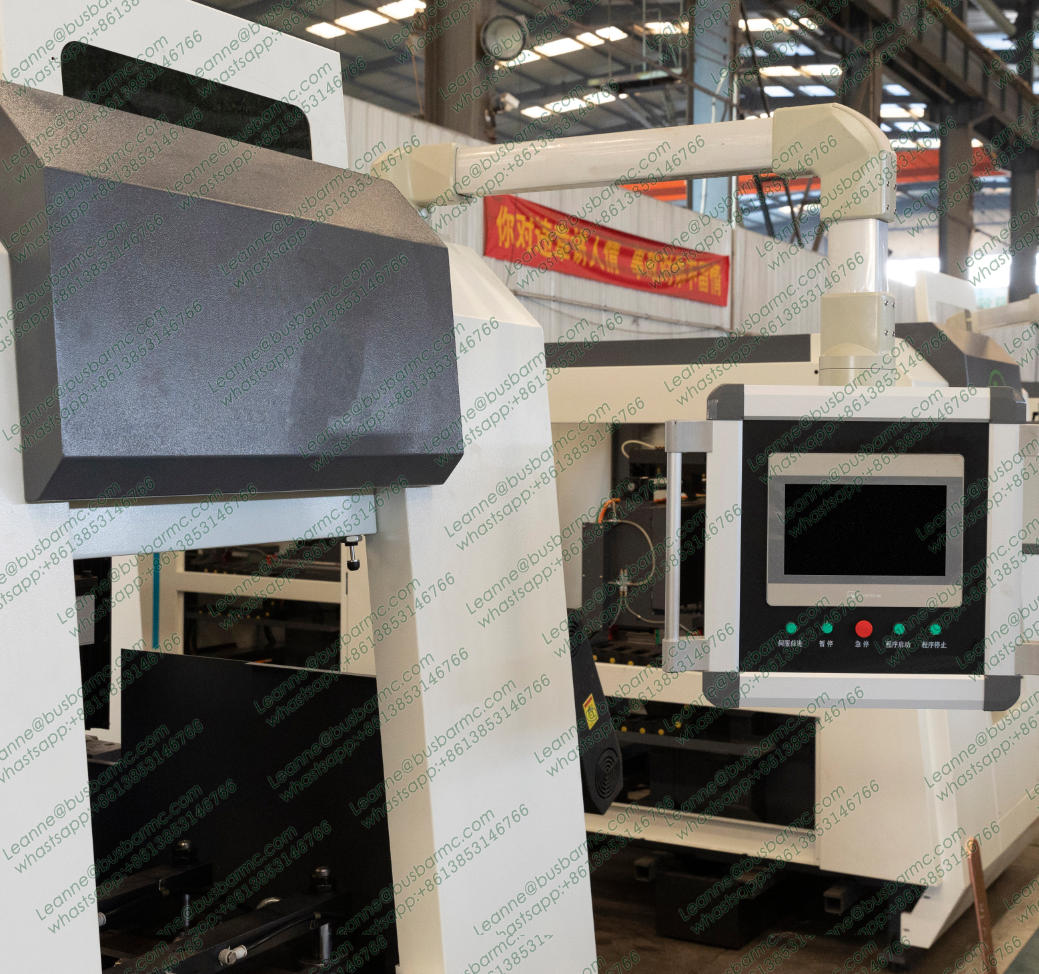

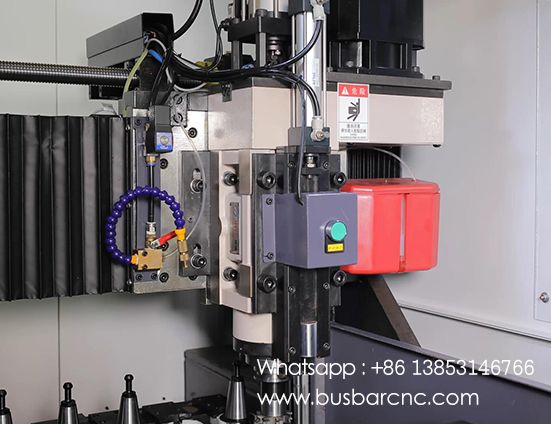

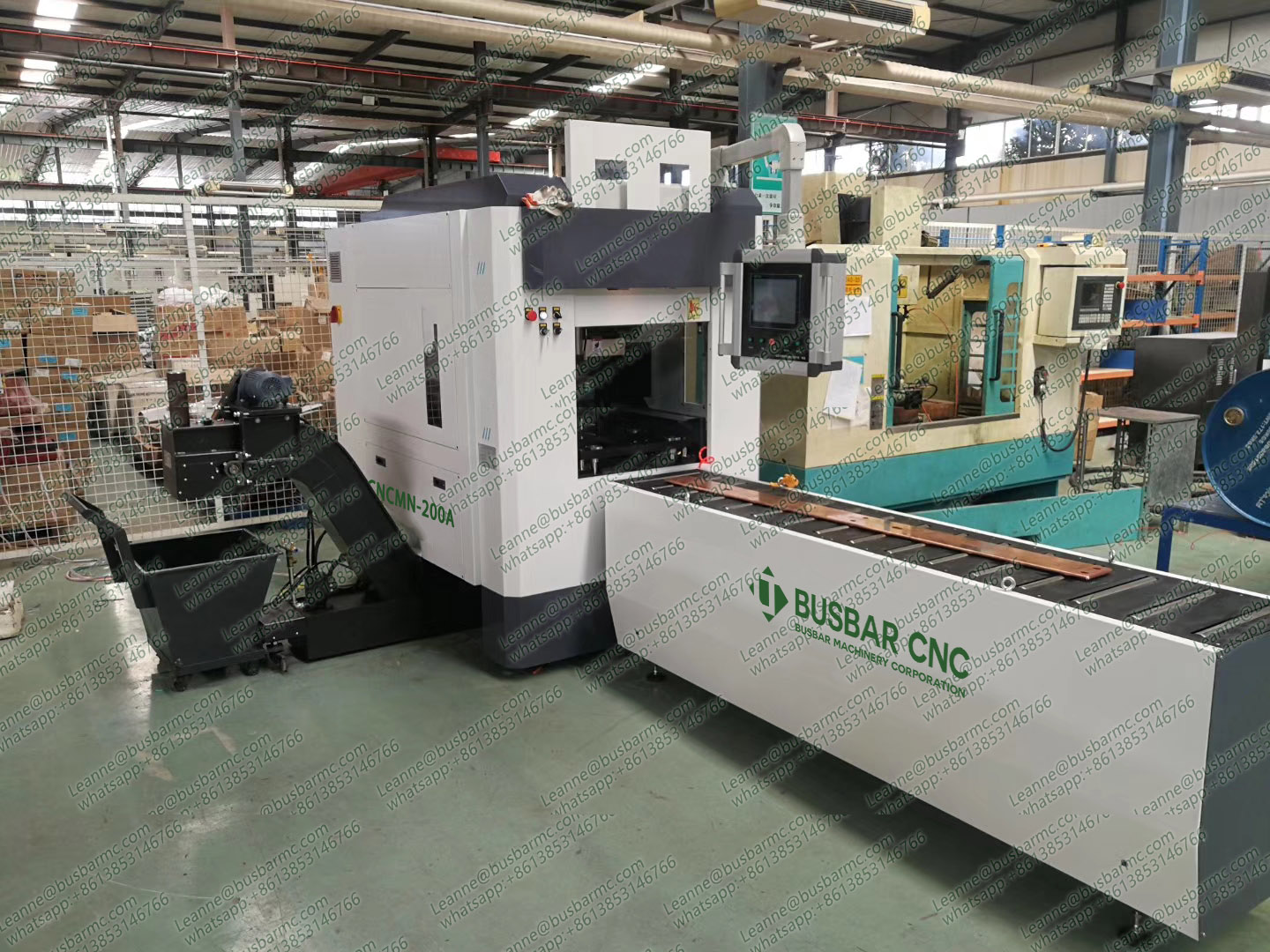

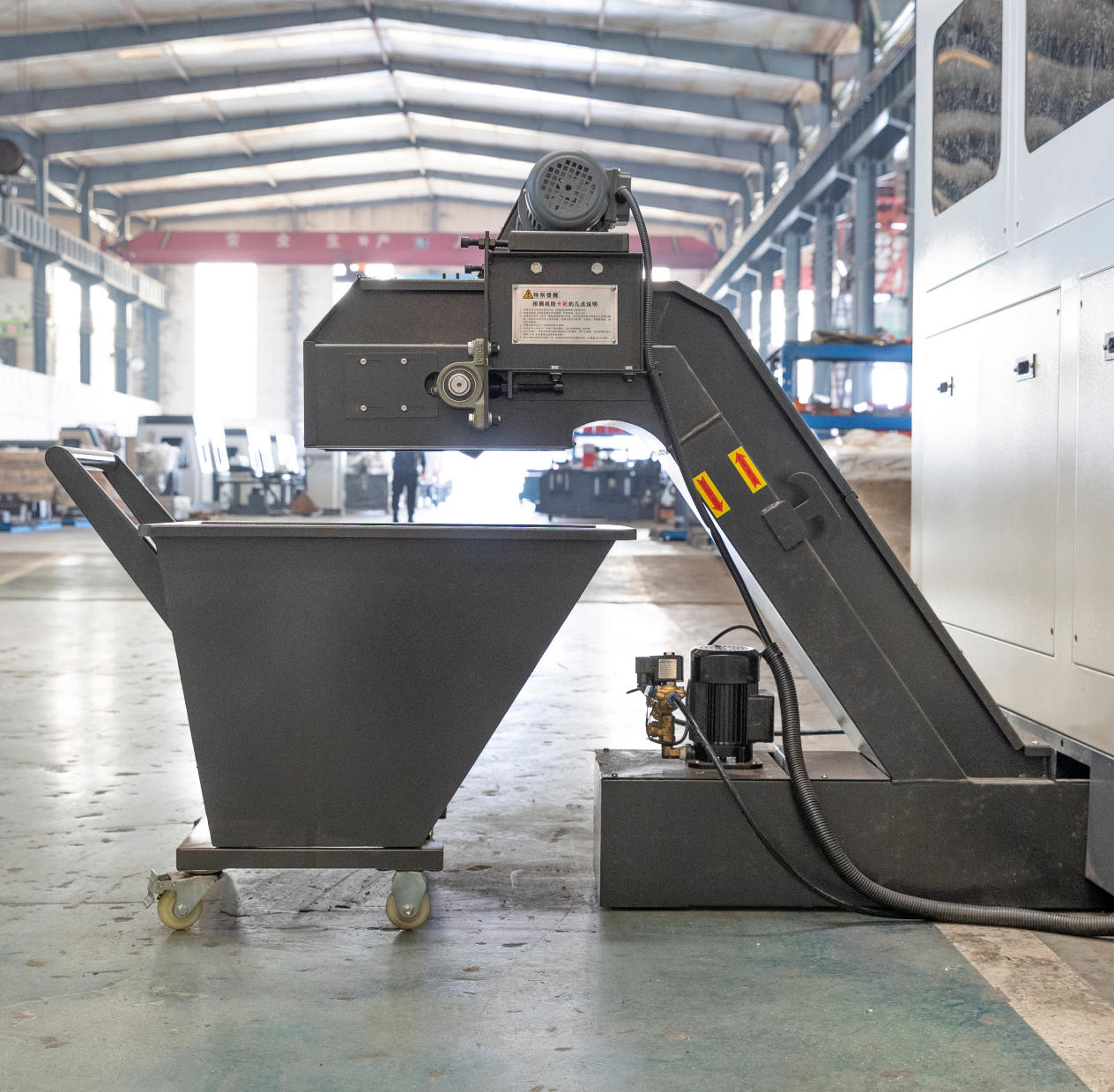

صور وفيديو المنتج
الأسئلة الشائعة
What information is needed for model selection?
Provide busbar material, maximum width and thickness, required operations, hole drawings, production volume and power standard.
Can the machine process both copper and aluminium busbars?
Most configurations support both materials within their stated capacity. Confirm the exact alloy and dimensions before ordering.
Are tooling and commissioning available?
Tooling, operating guidance and commissioning options can be configured for the project and destination.
How is the final configuration confirmed?
The engineering team checks the drawings, process sequence, capacity and electrical requirements before the quotation is finalised.
How can I request a quotation?
Submit the form below with the model, busbar dimensions and required operations for an application-specific proposal.
